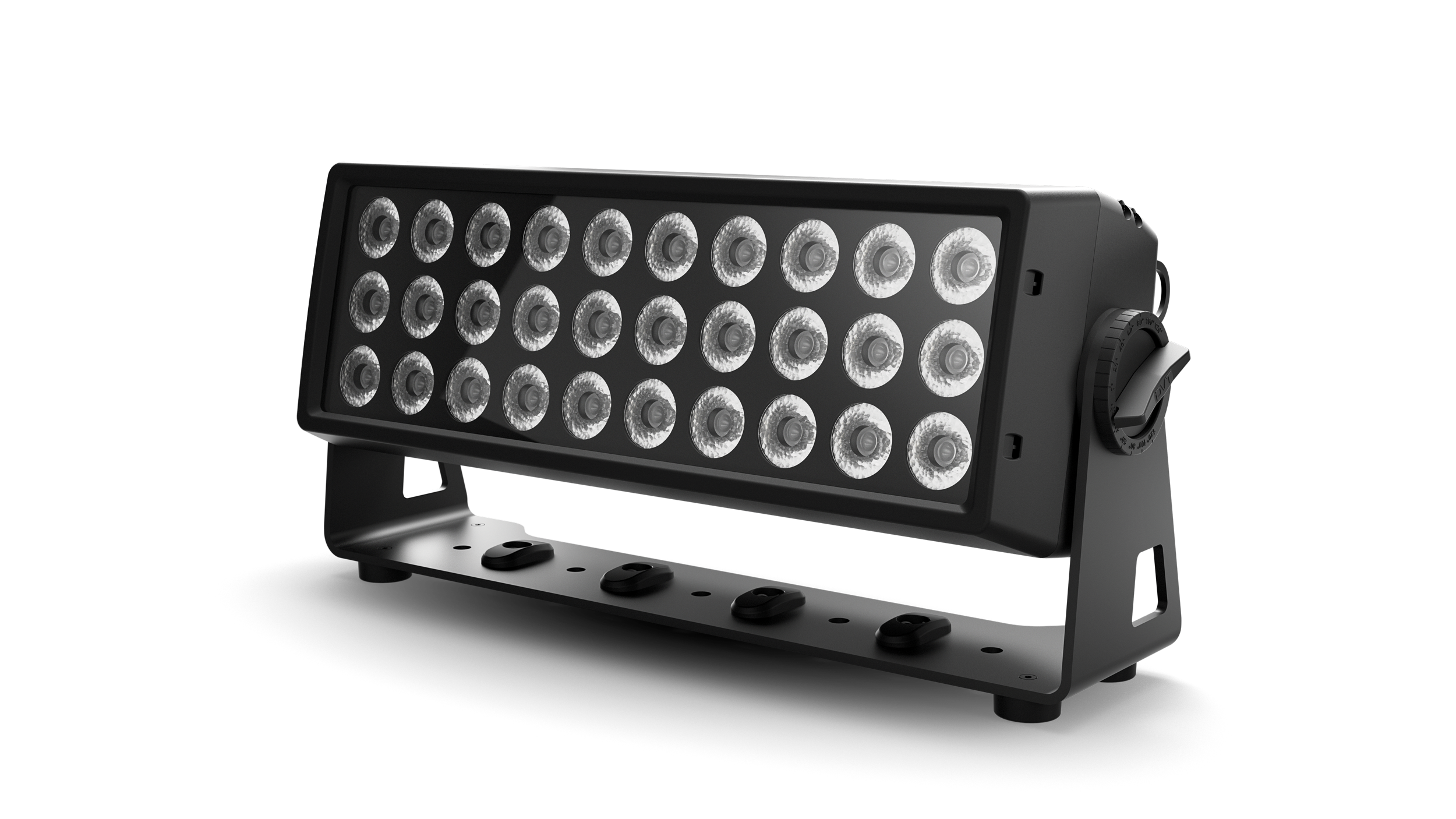

DVT Light PJ-5 RGBW
DVT Light PJ-5 RGBW
DVT Light PJ-5 RGBW
With 30 powerful 25W RGBW LEDs, the PJ-5 is sure to light up even your wildest dreams. Feel the strength of a staggering 21.795 lumens output, and cross weather off your list of worries with a strong and reliable IP66 rating.
The PJ-5 is filled with unique DVT Light technologies that help separate it from all other wash lights (that are not ours):
- Active Diffuser: Our Active Diffuser allows you to alter the beam angle of the light without changing a physical filter.
- NoFlick: Our specially developed NoFlick-technology removes all flickering, so you don’t have to waste time configuring your camera settings.
- Active Dehumidifier: Removes any humidity that enters the interior of the PJ-5.
With 30 powerful 25W RGBW LEDs, the PJ-5 is sure to light up even your wildest dreams. Feel the strength of a staggering 21.795 lumens output, and cross weather off your list of worries with a strong and reliable IP66 rating.
The PJ-5 is filled with unique DVT Light technologies that help separate it from all other wash lights (that are not ours):
- Active Diffuser: Our Active Diffuser allows you to alter the beam angle of the light without changing a physical filter.
- NoFlick: Our specially developed NoFlick-technology removes all flickering, so you don’t have to waste time configuring your camera settings.
- Active Dehumidifier: Removes any humidity that enters the interior of the PJ-5.
Explore our unique technologies: ActiDif NoFlick DeHydro QuickPrep
![](https://usercontent.one/wp/www.dvtlight.com/wp-content/uploads/2023/09/PJ-5-2500x.png?media=1699516133)
ActiDif
Forget about buying several different filter frames for your wash lights and start enjoying the versatility and freedom of our ActiDif-technology.
Our unique, patent pending Active Diffuser allows you to alter the beam angle of the light without having to change a physical filter in the fixture.
DeHydro
Stop worrying about weather conditions and humidity and start enjoying the ultimate freedom of our DeHydro-technology.
The PJ-5 contains a uniquely developed membrane that actively eliminates any humidity trapped within the fixture. Our DeHydro-technology makes sure your fixture remains completely unharmed no matter what environment you place it in.
NoFlick
When using the PJ-5, you no longer need to worry about adjusting your camera to the light source. Just turn on the fixture and enjoy perfect lighting in all your shots – no matter the equipment.
Our state-of-the-art NoFlick-technology guarantees a stable, gorgeous light beam through all types of recording.
QuickPrep
Test- and prepare your PJ-5 in seconds with our extraordinary QuickPrep-technology and save valuable time.
When using our uniquely designed DMX controller, your PJ-5 is up and running in no more than 30 seconds, giving you more time to focus on other aspects of your project.
Explore our unique technologies
![](https://usercontent.one/wp/www.dvtlight.com/wp-content/uploads/2023/09/PJ-5-2500x.png?media=1699516133)
ActiDif
Our unique, patent pending Active Diffuser allows you to alter the beam angle of the light without having to change a physical filter in the fixture.
DeHydro
The PJ-5 contains a uniquely developed membrane that actively eliminates any humidity trapped within the fixture.
NoFlick
Our state-of-the-art NoFlick-technology guarantees a stable, gorgeous light beam through all types of recording - completely flicker free!
QuickPrep
When using our uniquely designed DMX controller, your PJ-5 is up and running in no more than 30 seconds, giving you more time to focus on other aspects of your project.
![ActiDif icon button green](https://usercontent.one/wp/www.dvtlight.com/wp-content/uploads/2022/12/ActiDif-icon-Button-DUSTY-GREEN-150x150.png?media=1699516133)
Forget about buying several different filter frames for your wash lights and start enjoying the versatility and freedom of our ActiDif-technology. Our unique, patent pending Active Diffuser allows you to alter the beam angle of the light without having to change a physical filter in the lamp.
![DeHydro icon button green](https://usercontent.one/wp/www.dvtlight.com/wp-content/uploads/2022/12/Active-Dehumidification-icon-Button-DUSTY-GREEN-150x150.png?media=1699516133)
Stop worrying about weather conditions and humidity and start enjoying the ultimate freedom of our DeHydro-technology. The PJ-5 contains a uniquely developed membrane that actively eliminates any humidity trapped within the lamp. Our DeHydro-technology makes sure your lamp remains completely unharmed no matter what environment you place it in.
![NoFlick icon button green](https://usercontent.one/wp/www.dvtlight.com/wp-content/uploads/2022/12/NoFlick-icon-Button-DUSTY-GREEN-150x150.png?media=1699516133)
When using the PJ-5, you no longer need to worry about adjusting your camera to the light source. Just turn on the lamp and enjoy perfect lighting in all your shots – no matter the equipment. Our state-of-the-art NoFlick-technology guarantees a stable, gorgeous light beam through all types of recording.
![QuickPrep icon button green](https://usercontent.one/wp/www.dvtlight.com/wp-content/uploads/2022/12/QuickPrep-icon-Button-DUSTY-GREEN-150x150.png?media=1699516133)
Test- and prepare your PJ-5 in seconds with our extraordinary QuickPrep-technology and save valuable time. When using our uniquely designed DMX controller, your PJ-5 is up and running in no more than 30 seconds, giving you more time to focus on other aspects of your project.
Downloads
- Active Diffuser: 10°-45° (Patent Pending)
- Ingress Protection: IP66
- Flicker: None
- Humidity: Active Dehumidifier
Technical Specifications
LED expected lifetime: 50.000 hours
Light source: 30 x high-power 25W RGBW LEDs
Native lens options: 10°
Active Diffuser: 10°-45° (Patent Pending)
Efficacy: 41 lm/W
Light output all LEDs on: 21.795 lm
Light output blue: 1.972 lm
Light output green: 7.962 lm
Light output red: 4.598 lm
Lux @ 10m: 3.417 lux
Lux @ 5m: 13.670 lux
Lux @ 3m: 37.971 lux
Native beam angle(s): 10°
Native field angle(s): 24°
Color options:
Black – RAL 9004
Custom color – Any RALIK rating: IK06
IP class: IP66
Lens material: Tempered glass front
Material: Aluminum, PC/ASA, Rubber, Steel
Net dimensions: H: 28,6 cm x W: 63,6 cm x D: 17 cm
Net weight: 16,6 kg
Color calibration: Full color calibration
Humidity control: Active Dehumidifier
Dimming: 8/16 bit
Filters: Built-in Active Diffuser
LED panel: 6 individually controllable segments
Other: Low-Noise cooling / No Coil Whining / 10°-45° Beam Angle Alteration – without the use of filter frames
Strobe: Ultra-high-speed strobe effects
Tilt: 240°
Tilt locking system: Locking system with angle indicator
Electrical protection: Overload protection with automatic recover
Input voltage, absolute max. rating: 100 – 240 VAC; 47/63 Hz
Input voltage, nominal: 100 – 240 VAC; 47/63 Hz
Max inrush current 230VAC: 50 A
Max inrush current 115VAC: 24 A
Max power consumption: 600W
Max power thru @ 110 V: 20 A
Max power thru @ 230 V: 13 A
Power factor: 0.95 PF (230 V)
Power Supply Unit: Internal Auto-ranging electronic switch-mode
Standby power consumption: 12W
16-bit control: Dimmer, Red, Green, Blue
Cabled DMX: 5 pin XLR input/output
DMX channels: 7, 12, 22
DMX modes: 3
Protocol:
CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4S
USITT DMX512A
RDM ANSI E1.20Setting and addressing: OLED screen / 4 buttons
Standalone mode: Static Color
Wireless DMX: Lumen Radio with RDM
DMX data in/out:
IP67 XLR 5-pin connector, Female
IP67 XLR 5-pin connector, MalePower: Power input connector & link-thru
Mounting point: 2 x two quarter-turn locking points for two Omega Brackets
Orientation: Any
Safety features:
Side mount for safety wire
Minimum distance to combustible materials: 0,5 meter
Cooling: Active, Forced Air, Temperature-regulated
Humidity (max.): 98%
Temperature range, operating max.: 50°C
Temperature range, operating min.: -40°C
Thermal protection: Automatic overtemperature protection
Included: 2 Omega Brackets with 1/4 turn fasteners
Active Diffuser in action
Experience our unique ActiDif-technology, which allows you to alter the beam angle of the light using only DMX. No need to change a physical filter – everything is handled by DVT Light technology.
